2026 Europe Cgf Factroy Price Cheap Pet Liquid Aq | RFQ Sourcing Details

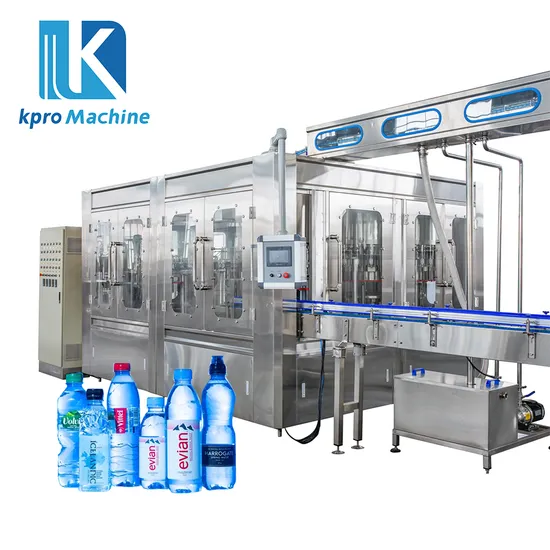

2026 Europe Cgf Factroy Price Cheap Pet Liquid Aqua Automatic Mineral Pure Bottle Drinking Water Juice CSD Drink Washing Filling Bottling Capping Machine Our machine can be used to produce bottled mineral water, purified water, alcoholic beverage and other non-gas Liquid.

This Complete Water Bottling Plant Machine can be applied to all kinds of plastic machine such as PET, PE. Bottles size can vary from 200ml-2000ml meanwhile few changeover is needed. Different models can satisfy various requirement of output from 1000 bottles/hour to 24000 bottles/hour.

This model of filling machine is designed for the low/middle capacity and small factory. It takes low buying cost, low water and electricity consumption and few space occupation into consideration at the beginning. At the same time it can perfectly complete the function of washing, filling and capping.

It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine.The equipment is fitted with advanced Mitsubishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating conditions of each section,which makes the operation of this equipment highly automatic and convenient.

Rinsing Part Filling Part Capping Part Technical Parameter: Model CGF8-8-3 CGF14-12-4 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12 Number of rinsing head Number of filling head Number of capping head Rated production capacity(500m) Installed capacity(KW) Overall size Lx.

WxH(mm) 1900×1420×200 2200×1600× ×1900× ×2180× ×2300× ×2650×2300 Complete Line Solution: Flow Chart 1) Water purification system Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis → Ozone sterilizer → pure water tank 2) Bottle filling & packing system Pure water tank→Bottle blower→Air conveyor→Washing filling & capping 3-in-1 filling machine→ Light check → Full-automatic labeling machine → Ink jet machine →Full automatic packing machine→ warehouse 3) Bottle making system pet preform→Autoloader→reheater→molding→ bottles Water Treatment purify system for mineral water, pure water and other bottled water for food and beverage industry.

It's maunly composed of the following equipment: pre-treatment, membrane system, electrodialysis device, sterilization system etc. The raw water can be ground water, sea water, tap water or the other water source, we choose suitable purify system based on raw water quality.

The capacity usually from 1T to 200T per hour. Bottle blow molding machine is used to make containers for product, PET preforms are heate by lamps and then blowed by high pressure clean air within mold. It will become a bottle container as you designed.

The blow molding machine capacity normally from 1,000BPH to 24,000BPH. Bottle filling machine is a fully automatic multifunctional combined unit consisting washing, filling and capping. The bottle filling machine is the step of put materials into containers and seal it.

It's very important and sensitive for quality control. The filling machine capacity in our industry normally start from 1,000BPH up to 24,000BPH. There are different production, such as BOPP labeling, sleeve and shrink labeling and adhevise labeling etc.

The capacity for labeling machine starts from 2,000BPH up to 24,000BPH, we can choose different but suitable ways for customers. Bottle packing machine is the last step for production line usually. There are different ways for packing such as shrink packing, carton packing, half- tray wuth shrink packing etc.

Bottle packaging machine speed usually from 10PPM up to 80PPM, all confirgurations we used are world famous brand, to ensure the machine quality. Optional Li
